Last year I wrote a story about the frame rust that is
beginning to cripple Discovery II trucks that run in snow country, particularly
the 2003-4 models. At the time, the only
fix was a new frame ($10,000+) or hand fabrication and patching (costly and not
always successful.) Today I am pleased
to show a new and more affordable alternative.
Rovers North has begin selling rear frame sections that
replace the last two feet of a Discovery II frame. These premade sections have all the complex
fitments that make one-off fabrication difficult, and they are easy to install
(at least compared to the alternatives!)

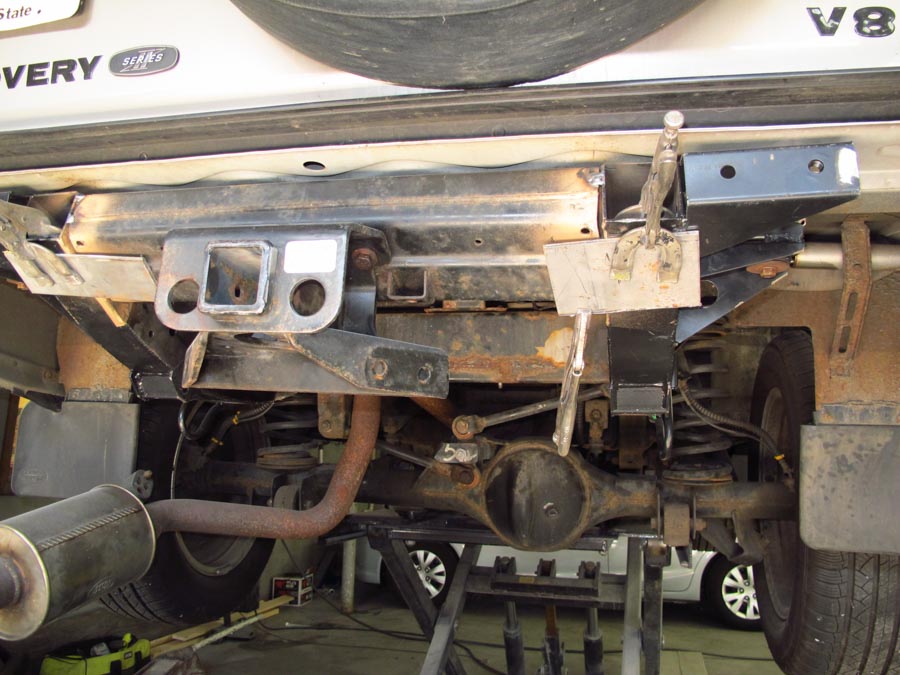

Here is what a rotted frame looks like, pre-repair:
You don't see much damage from a distance but when you look close the rear frame rails are totally destroyed. This happens because the rails are thinner than older Land Rovers, they are not protected inside, and they are designed in such a way that gravel can get inside. When that happens, salt water from winter roads soaks the gravel and the mix just eats the frame from inside out, but luckily only in the gravel spray areas behind the wheels.
We remove the gas tank for safety and access. To do that the
trailer hitch has to come off. We usually
send the bits of hitch for sand blasting and finishing – preferably powder coat
for its durability.
The truck is set up on a body lift and the rear of the frame
lopped off. Here is what the rotted segments look like on the floor:
The edges are smoothed and any corrosion extending forward is
repaired. Then the new frame rail ends
are installed. You can see how they
slide over the original rails, and the six holes on each side give space for
bolting and welding.
The gold finish on the frame is a weldable corrosion
resistant primer, so the repaired frame won’t be so quick to go the way of the
original.
The rear crossmember will take some fabrication as you see,
but it’s not a big deal.
These frames also rust and break alongside the right catalyst, and we repair that with plate to strengthen the sides and bottom of the frame for about two feet in that area. Once the frame is repaired we still recommend treatment with Waxoyl. The Waxoyl may not hold on badly rusted and flaking areas but it will significantly slow the progress of corrosion most everywhere else. It's not optimal - applying on rusty frame - but it's the best post-repair preservative I know. The image below shows a repaired area treated in Waxoyl:
We are very pleased to see these new frame rail repair pieces. I predict they will save quite a few truck from the scrap yard!
(c) 2015 John Elder Robison
