Wiring Damage in Cars - what causes it and what it looks like

When we diagnose electrical problems in cars the most common finding is failed components.  Light bulbs come first, followed by motors of various sorts, and then switches and finally sensors.  We can see burnt out bulbs but other component failures are often invisible, and are diagnosed by test.  A heater fan or fuel pump that does not operate when powered up may look perfectly fine, but it does not work.  Switches and sensors are often the same in that they fail invisibly.

Testing has become more complex in the past 20 years as cars have moved from simple 12 volt off-of switching to smaller wires carrying digital data of various sorts. Where we once tested circuits with simple test lights we often need logic analyzers to read and interpret complex data streams.  Automobile wiring has always been vulnerable to corrosion, and digital circuits increase that vulnerability.

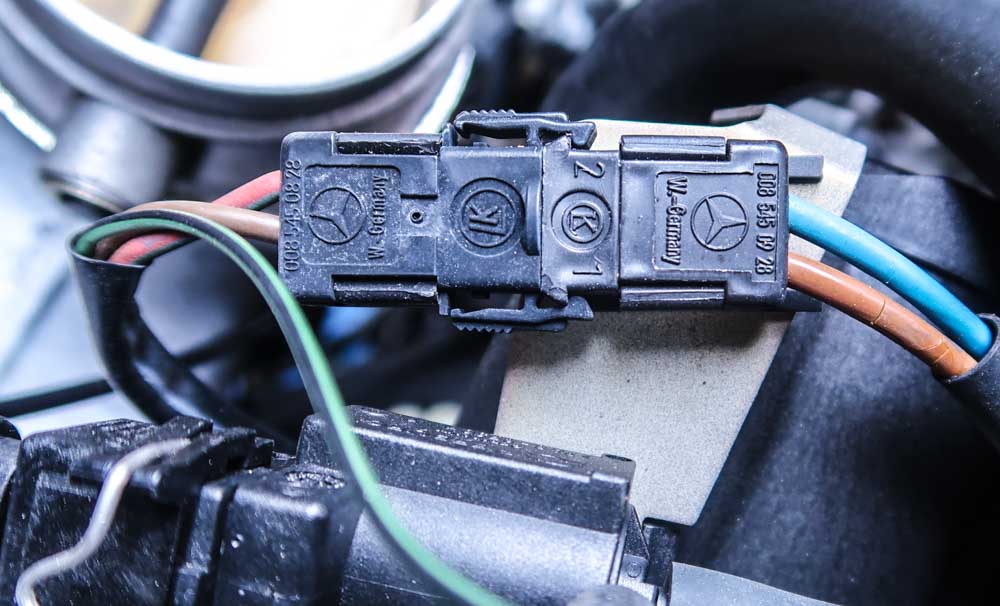

Nothing visible from outside, but pull the connector apart and you can see the corrosion (c) JE Robison

Technicians have learned that most wiring problems are at the ends – at terminals and junctions.  In between, there’s just the strand of wire, and what can go wrong with that?

Sometimes, a lot can go wrong.  Rodents can get into your car and chew into wiring.  Rodent chewed wires look like this:

Chewed wiring in a BMW   (C) JE Robison

Mice can chew right through small gauge wiring leaving inexplicable open circuits that can be very hard to find.  A less common result is short circuits among wires in a bundle.  Shorts like that can lead to electrical system meltdowns and even fires.

Another problem we see is invisible water damage.  Many cars are built with wire harnesses running along the floor.  BMW and Land Rover are two companies who do that.  If those wire harnesses have any punctures in the individual wire insulation those strands will be vulnerable to corrosion from water on the floor, and after absorbing water for a few months they can rot through the wire leaving an open circuit hidden invisibly inside the insulation.

Problems like that can be very hard to track down.

The final problem we see with wiring is insulation breakdown.  Sometimes carmakers and their suppliers make mistakes, and the insulation ends up breaking down.  When that happens the wire insulation cracks and falls off.  That’s sometimes a real disaster, particularly in the case of a multi wire harnesses in the engine bay.

The problem with insulation breakdown is that it’s often fickle.  For example, the problem may only affect 12 gauge brown wire, or perhaps it’s all the 20 gauge wire in a car.  Some series of cars are vulnerable; luckily most are fairly immune.

In this photo you can see a number of wires, but only one has crumbling insulation.

Look closely at the brown wire, bottom right (c) JE Robison

The moral of this story is that wire may look simple, but the problems wire can create are far from simple to find and fix.  We’ve learned through hard experience that a sensor can test good, and the connector can be nice and clean, yet the signal may still fail to arrive at the other end.  The more complex electrical system get the more common issues like this are becoming.  Electrical systems in cars are more reliable for sure, but a modern car has hundreds of wires, as opposed to dozens in the cars of yesterday, and that makes them inherently more vulnerable.

Sometimes all it takes is one strand corroded in a 20 wire harness, and if that wire carried a crank authorization signal you have a stranded vehicle.
