Convertible top hydraulics are shaping up as a major weakness in the Bentley Azure and Final Series Corniche from Rolls Royce.  These cars were built from 1996-2004 (a newer Bentley variant remains in production today) and all are vulnerable to this issue.

The Bentley Azure and RR Cornice are fine cars but the tops are a weakness (c) J E Robison
Here’s the problem, in a nutshell.

The engineers at Crewe wanted to design a fully automatic convertible top for the new Azure series.  But they did not have the resources to do a new design; they had to adapt something else that was already out there.  The Mercedes SL500-type design was well regarded, and they chose to adapt it to the Azure body.

Unfortunately, the design didn’t work as well on the RR/B.  It’s remarkably reliable on the Mercedes, and astonishingly flimsy and incredibly costly to fix on the Azure.  What went wrong?

There are a few essential problems.  First, the systems use very high hydraulic pressures.  Older automatic tops used big cylinders and rams.  With several square inches of ram, you don’t need very high hydraulic pressures to generate the force to move the top.  However, the newer cars use tiny actuators hidden in the top. They are smaller, so the hydraulic pressure needed for a given actuation force rises.  Because the hydraulics are hidden, they are often at a mechanical disadvantage (leverage in reverse) and need to push harder to move the top.

The result:  hydraulic pressures on a 2001 Bentley convertible top can run almost 10 times as high as the pressures on a 1987 Bentley convertible top.  With that factoid in mind, it should not surprise you that the newer tops are not as reliable.

In addition, the newer tops use automatic latches instead of human power to pull it shut and locked.  Those latches are not as rugged as they should be.  Why, you ask?  Look at a Bentley Azure and then look at an SL500.  What do you see?  The Bentley top is significantly larger.  That multiplies the forces on every component and it’s one more reason a reliable Mercedes design didn’t work out the same on the RR/B.

The next problem probably started in Crewe’s engineering department, though I doubt they would admit it.  Mercedes uses plastic lines that are impervious to hydraulic fluid, but that material selection did not translate to RR/B. Someone there chose a hose material that deteriorated with contact with hydraulic fluid.  The result – when they get to be ten years old you see the black rubber casings falling off the hoses, and blowouts inevitably follow.

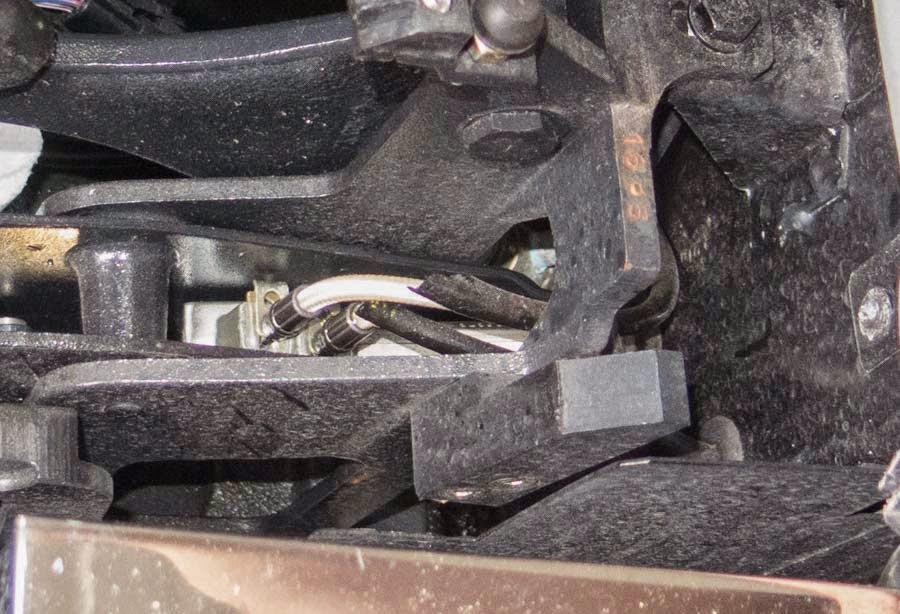

How do you check your convertible top hoses?  Look at the hoses in the main hinge area when the top is partly lowered.  Here are examples of hoses that are coming apart.

The upper photo is a closeup of jacketing peeling from a hydraulic hose.  Failure is imminent (c) J E Robison Service
If this problem is ignored you will see leakage, as evidenced by the leaked oil in these photos.

Leaked hydraulic oil in the convertible top well (c) J E Robison Service
Oil seeping from the convertible top hydraulic line bundle
If you ignore it even longer, you will eventually be showered with oil when a line blows under pressure and the interior of the car is sprayed and damaged.

Header bar line with deterioration.  These are the worst if they blow
"Green showers" most often come from the header bar, when the lines above the rear view mirror blow out.  The reason those lines are the first to blow is that area takes the most beating from the sun. In a hot climate that area can be over 200 degrees all day, and the oil they originally used breaks down into a green jelly that won't pump, and causes pressure surge and blowouts.  Jaguar is known for having this problem too.

The new hydraulic oils are synthetic and they resist this, but the moral there is - change your top hydraulic fluid every few years, or else.

When the top is partly folded there is another thing you want to check – the cables.  These new automatic tops need to fold into a tight space to be hidden under the rear deck.  To do that they rely on cables sewn into the top lining.  Loops of wire around those cables pull the top fabric against the bows and fold everything properly.  If the cables break the top will jam in the bows, and if the bows bend as a result – you have big trouble.

Broken stay cable on Bentley convertible top
In most of these cars you will see leakage from the hydraulic actuators in addition to problems with the lines.  Here is a set of actuators removed for service.  We rebuild these units rather than replace them.

So how do you fix this?  You remove the trunk lining, and the pump and lines.  Open the convertible top boot and remove the top as an assembly. Remove the cover in the convertible top well, and unthread the lines there.  Remove the rear seat, both side panels, the right side floor covering, and the right side dash and windshield pillar trim.  Remove the windshield header bar covers.  Remove the lines and remaining actuators.  Replace and reassemble.

Sounds easy?  Look for a job time of 60-90 hours, more if you are not experienced or run into trouble.

In the next convertible top installment I will begin to cover the actual repair process.

This article is about the automatic convertible top system used in Rolls Royce and Bentley Azure and Corniche from 1996-2005.  Check out this article for thoughts on the newer Bentley GTC convertible top and its problems

And here's an article on 1997-2005 Jaguar XK8 and XKR convertible tops - they have some of the same issues but are simpler to fix

Good luck
